clarriba@iupui.edu

+1 (203) 503-8995

MURI Project: Week 3

Week 3 (June 13th-19th)

Mechanical

Collector finished

Collector finished

At the very beginning of week 3, we measured the dimensions of the chamber again to determine a more precise requirement for the collector plate. According to the requirements, that there should be enough gap between the plate and the chamber and that the mesh need to be ensured insulated to the chamber, we made some adjustment on the design of the collector plate. A 175 mm diameter metal plate was used tom replace the original 190 mm diameter plate. The plastic plate was redesigned and processed to be suitable for the new metal plate. And a plastic edge was used to insulate the mesh and the chamber. After three days of learning, trying and overcoming different difficulties, we used the drilling machine and finished the manufacture of the collector plate. The only thing missed for this part is a matching screw to fasten the metal plate, the plastic plate and the Teflon rod together.

Collector isolation plastic being finalized in the mill

Collector isolation plastic being finalized in the mill

Creo 3D Model used to get accurate dimension to build the injector

Creo 3D Model used to get accurate dimension to build the injector

Moreover, based on the requirements of the experiment, we redesigned the injector and re-determined the dimensions of the parts of it. As a high precision of process is desired, we used Creo to develop 3-D models of the injector so that a high quality manufacture is possible. Also, with great effort, we finally acquired the permission of using the CNC machine, which is under the charge of the Mechanical Eng

ineering Technology department. It means that the components of the injectors can be processed with high efficiency and satisfactory quality. Hopefully, the injector will be finished in next week. By then, every major parts of the experiment equipment would be finished. And we can assemble them together and test the equipment. If everything goes smoothly, we are optimistic to get the experiments started in two weeks.
In addition, since the pulse generator, oscilloscope, function generator and the high voltage supply are already set up, we set up our work space for future experiment.

Experimental Setup

Experimental Setup

In a conclusion, we achieved satisfying progress in week 3. Things are getting ready for the fully commence of the experiment.



Electrical



Electrometer tested inside box

Electrometer tested inside box

For week 3, the first iteration of the electrometer was successfully tested and completed:  we used an oscilloscope to test the gain for each amplifier stage which led us to the discovery of a faulty operational-amplifier.  After replacing the faulty op-amp with a new one and obtaining the desired gain, we added the 220KΩ resistor to the first stage, tested again, and confirmed the desired gain result.  Next we finalized the electrometer by trimming excess wire on the board’s underside and drilling 4 holes (one per corner) in which to screw on small rubber “feet” so that the board may stand evenly and securely inside the metal housing apparatus.

Next we hooked up our oscilloscope and computer for data acquisition and analysis:  our particular oscilloscope/software requires an RS-232-C connection.  We had a DB9 Serial RS-232 cable with two male ends, but our PC port was also male (see images below for detail) so we obtained the proper adapter and hooked it up accordingly.

RS-232 Male Port on PC

RS-232 Male Port on PC

RS-232 connection to Oscilloscope

RS-232 connection to Oscilloscope

Both RS-232 were male

Both RS-232 were male



RS232d

The adapter we purchased

Lastly, we designed another circuit using transistors to implement our high-voltage power supply.  Below are the circuit diagram and the schematic created for the circuit board using Ultiboard software.

HV Switch using MOSFETS

HV Switch using MOSFETS

Switch Schematic. Ready to print

Switch Schematic. Ready to print

For the coming week (week 4) we will continue building and begin subsequent testing of this circuit, as well as begin coding for data acquisition / analysis.



Comments (0) Uncategorized

Read more

MURI Project: On the way to the Stars

This is the blog where we show our Progress towards building a Time of Flight (ToF) chamber to measure the properties of Ion Beams for Electrical Propulsion.

CAD Design of the ToF Chamber

CAD Design of the ToF Chamber



Week 1 (June 1st-5th 2016)

Agenda:
• Set up
• Equipment Test
• Trial Run
• Understanding



This was an interesting week for the team. It began with the team meeting on Wednesday June 01st, followed by regular lab work.

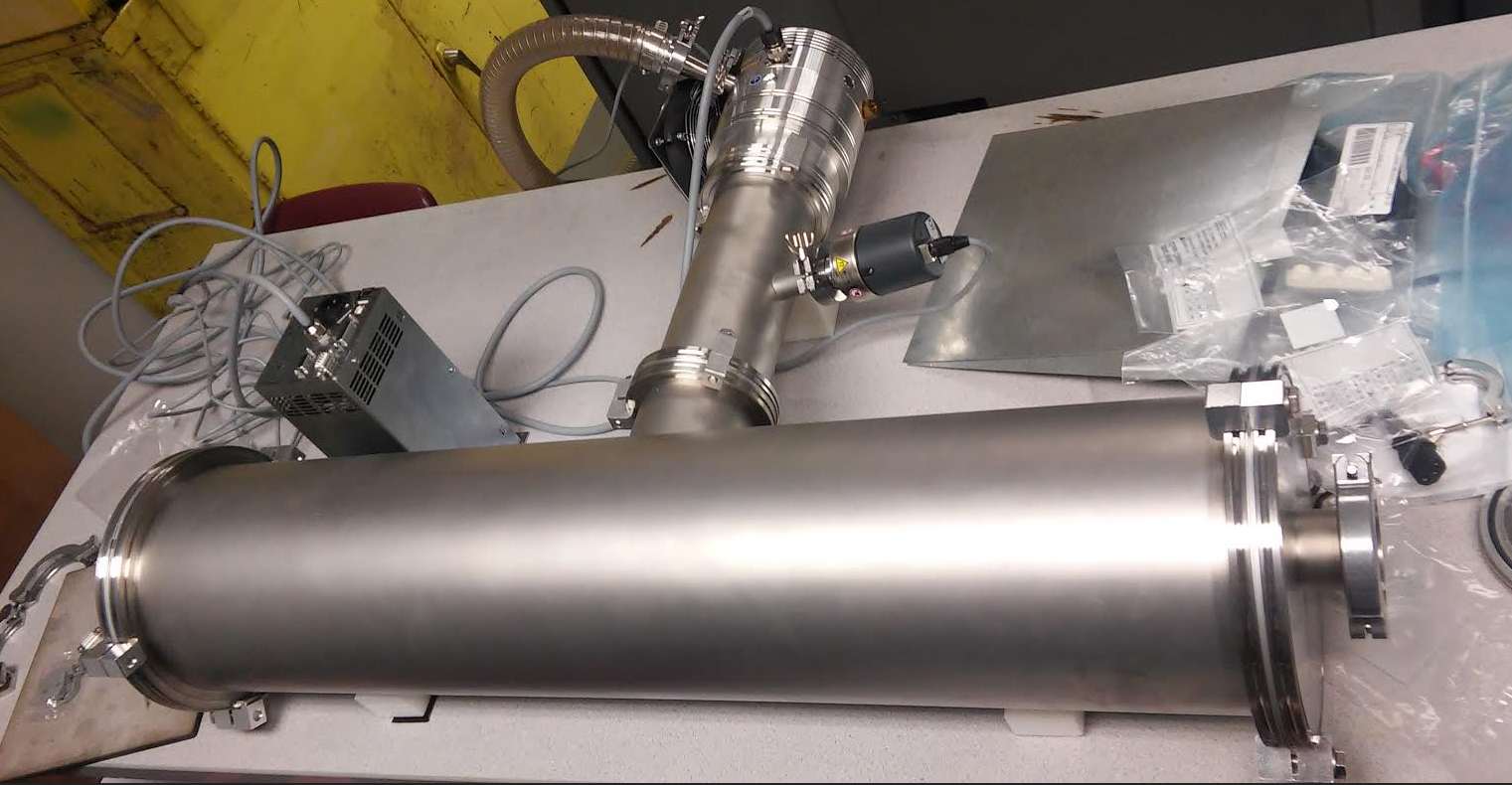

Time of Flight Chamber. Turbo and mechanical pump attached!

Time of Flight Chamber. Turbo and mechanical pump attached!

In our first meeting we were able to complete obtaining the dimensions for the diameter of the plastic casing of the collector. We were also able to acquire the dimensions of the collector plate, keeping in mind the angular spread of the electron beam and separation from the chamber itself. Rest of the chamber assembly went smoothly without many hurdles. The only problem we ran into was with a missing connector part to connect the primary vacuum to the secondary one.

By Thursday, our second lab session, the PCB boards were designed and our primary vacuum was connected for testing purposes. We ran into a problem when we were unable to connect our vacuum to a power supply due to its high voltage requirements and the transformer wouldn’t take that much load.

Friday was a great day! We were able to connect the missing part and have a complete test run of the chamber and vacuums. The PCB was printed by evening and we were able to understand the working of the remote control for use with the secondary pump. We were able to reach a low pressure of around 1.2E-07. We also were able to have the electrometer presentation prepared.

Week 2 (June 6th-12th 2016)

Two stage electrometer circuit design

Two stage electrometer circuit design

Circuit Board Printed. Let us add the components

Circuit Board Printed. Let us add the components

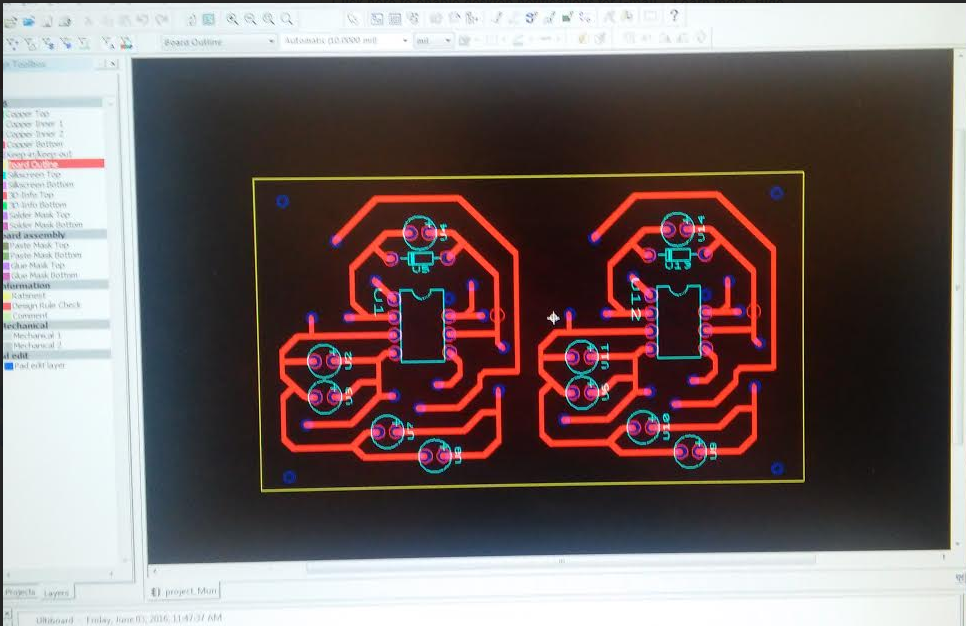

The electrometer was built in order to measure electrical potential at extremely low values without drawing any current from the circuit. In order to make the electrometer, a layout was needed to be placed on a printed circuit board. We used Ultiboard to design the circuit diagram as shown above.

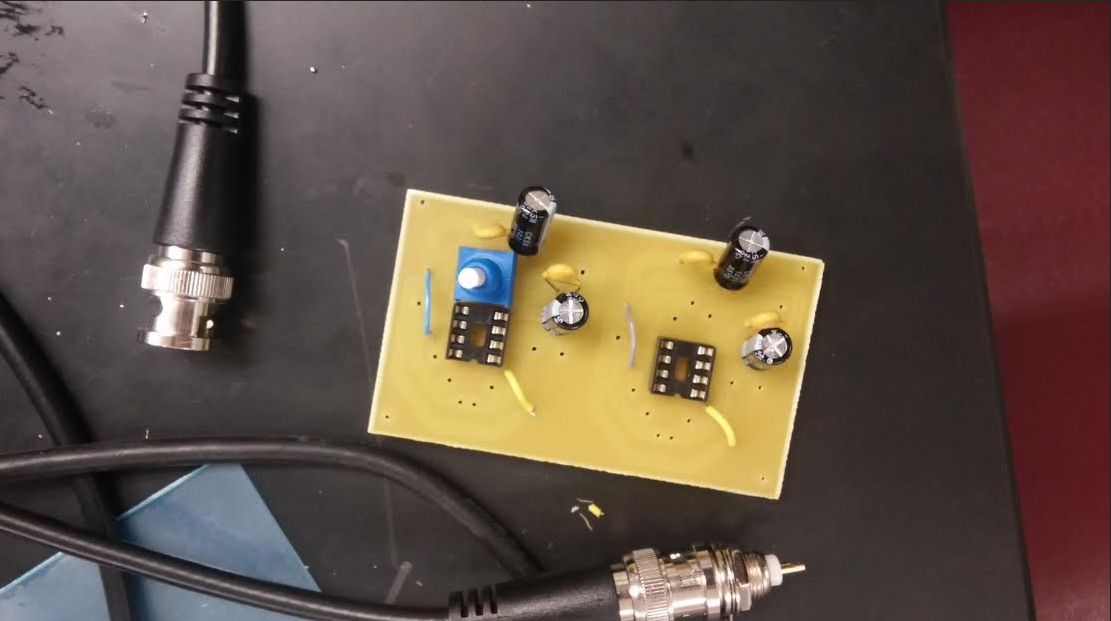

Electrometer assembled and put into the box. Ready to test it!

Electrometer assembled and put into the box. Ready to test it!

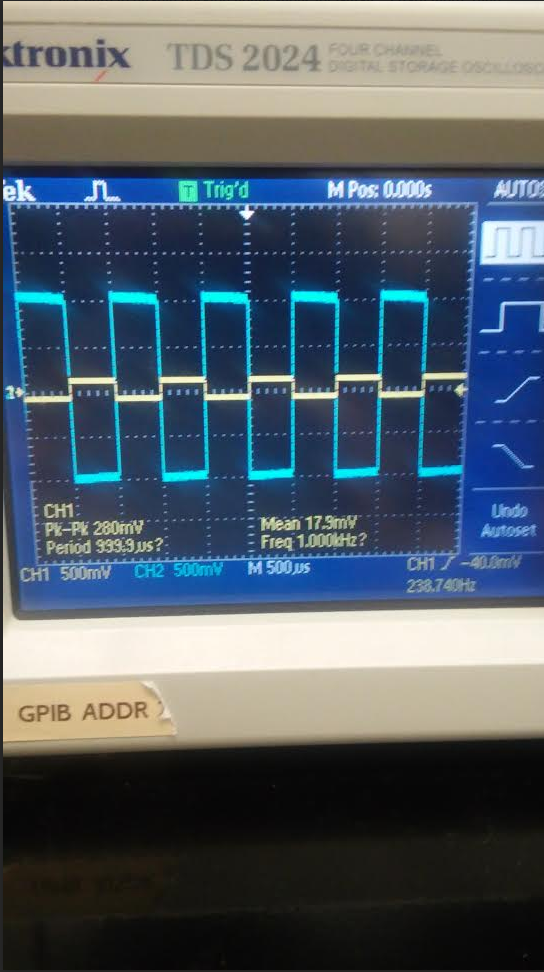

The printed circuit board was then printed out and the parts were then assembled onto the board. Once done, we tested the gain using an oscilloscope. The results were expected as the first stage of the electrometer had a gain of -10 and both stages together had a gain of 100. Once the desired results were obtained, the electrometer was then connected to the BNC connectors

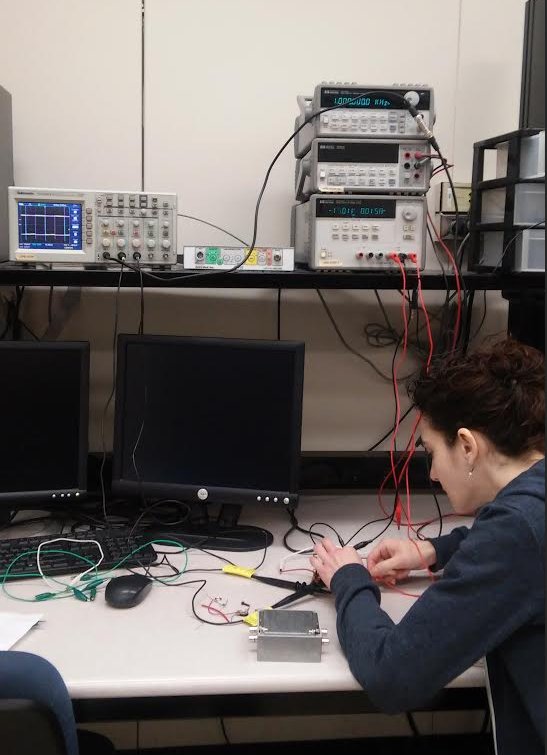

Bree is testing the electrometer and making sure that everything is properly working.

Bree is testing the electrometer and making sure that everything is properly working.

It works!!

It works!!

Comments (0) Uncategorized

Read more
